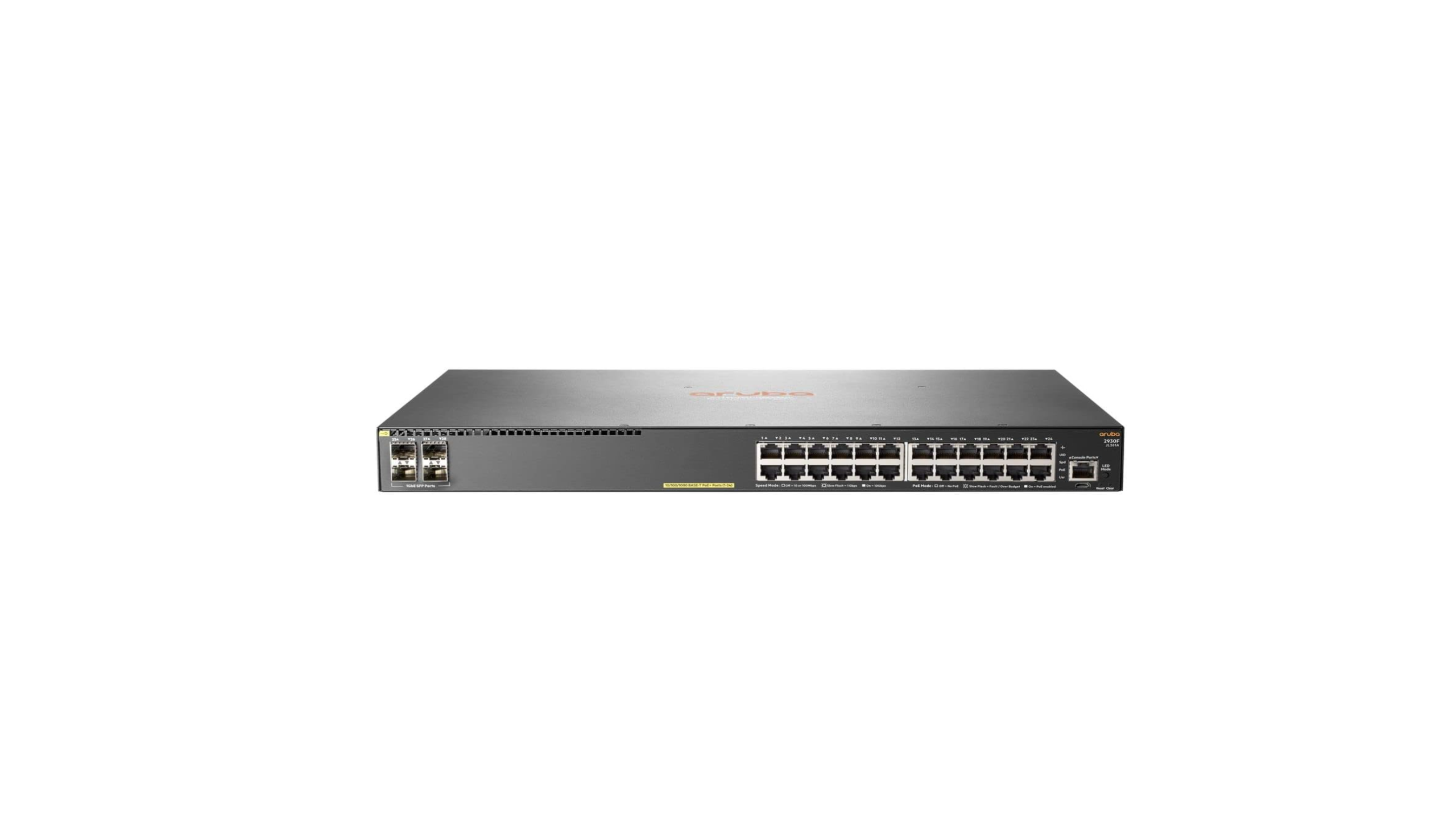

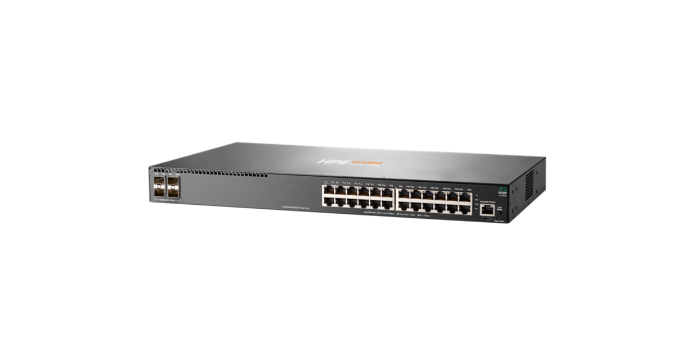

HPE Aruba Networking 2930F 24G 4SFP+ Switch

• The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
• Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow®, IPv6 with no software licensing required.
• Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
• Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
• Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Differentiator Popular 28-port Gig + 10G access switch.
This model has 24x 10/100/1000 ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity.

Power consumption 29.3W (maximum)

Heat dissipation 100 BTU/hr (105.5 kJ/hr)

Input voltage 100–127/200–240 VAC, rated

Ports 24x RJ-45 autosensing 10/100/1000 ports
4x SFP+ 1/10GbE ports
PHY-less

Latency 1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs

Switching capacity 128 Gbps

Throughput Up to 95.2 Mpps

Memory and processor Dual Core Arm® Cortex® A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC

Management features HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Central network management
HPE IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
