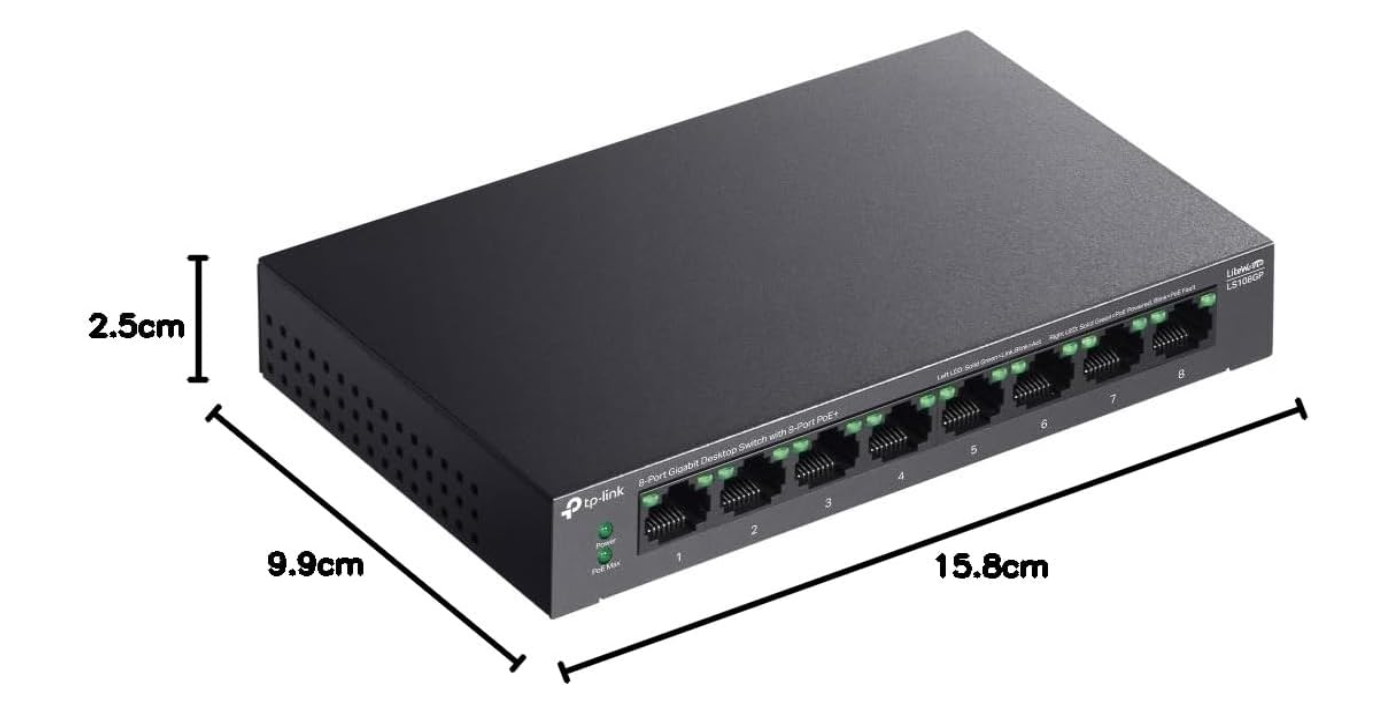

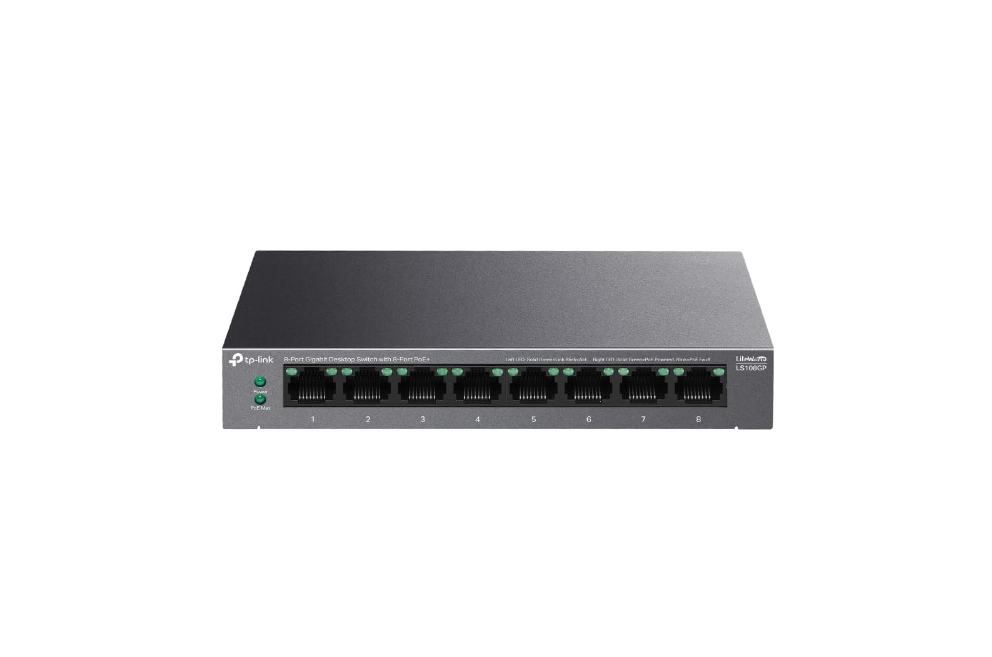

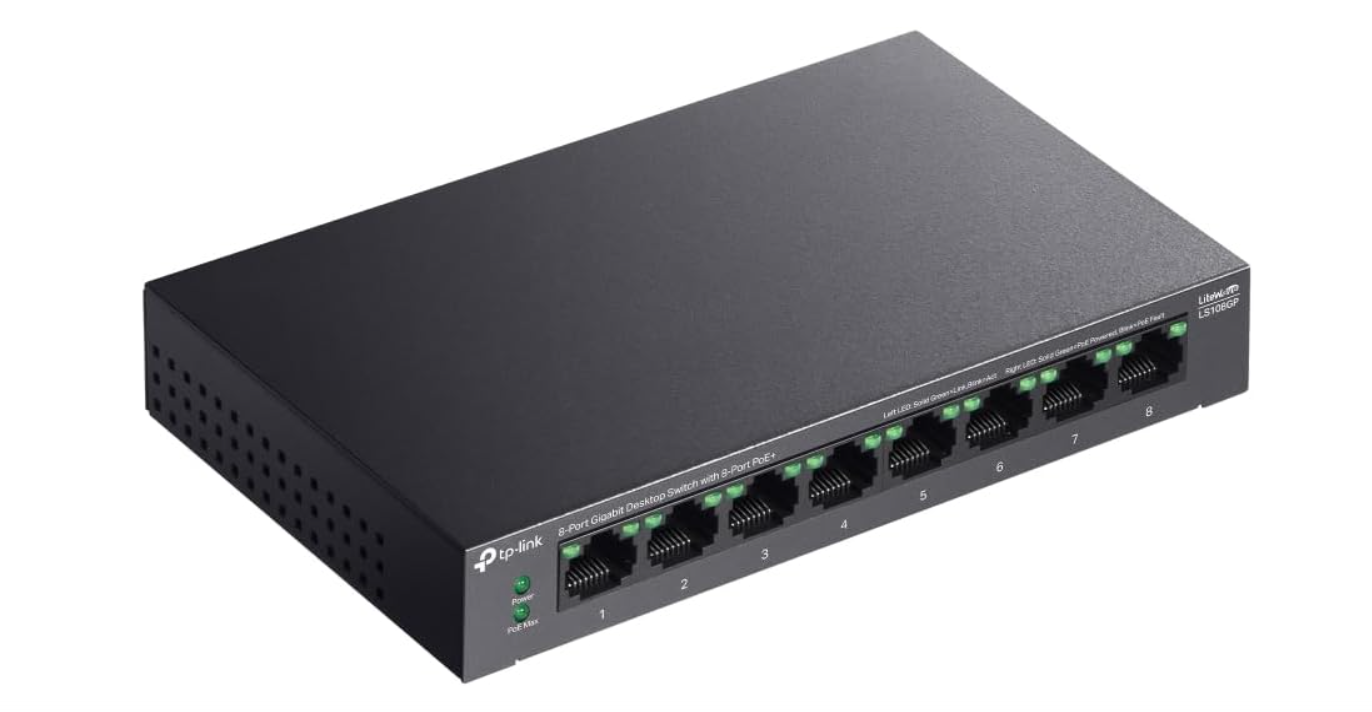

TP-Link 8-Port 1 Gigabit Desktop Switch with 8 PoE+ Ports is a high-performance networking solution designed for businesses, offices and surveillance setups. With eight gigabit auto-negotiation ports, it offers a 16 Gbps switching capacity for seamless data transfer. The 802.3af/at-compliant PoE+ ports provide a total power budget of 62W, delivering up to 30W per port, making it ideal for powering IP cameras, access points and IP phones via a single cable. The Extend Mode allows PoE transmission up to 250m, perfect for large-area surveillance deployment. PoE Auto Recovery ensures stability by automatically rebooting unresponsive devices. Designed for silent operation, the fanless metal casing ensures reliability and durability in various environments. Plug-and-play functionality allows for hassle-free installation without the need for configuration.
Interface:
8× 10/100/1000Mbps RJ45 Ports (Ports 1-8 supports 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Power Supply:
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100 STP (maximum 100m)
PoE Ports (RJ45):
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8, up to 30 W PoE output per port
PoE Budget: 62 W
Max Power Consumption:
5.53 W (220 V/50 Hz. no PD connected)
71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation:
18.81 BTU/h (220 V/50 Hz. no PD connected)
243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
Advanced Features:
Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
PoE Auto Recovery Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology
